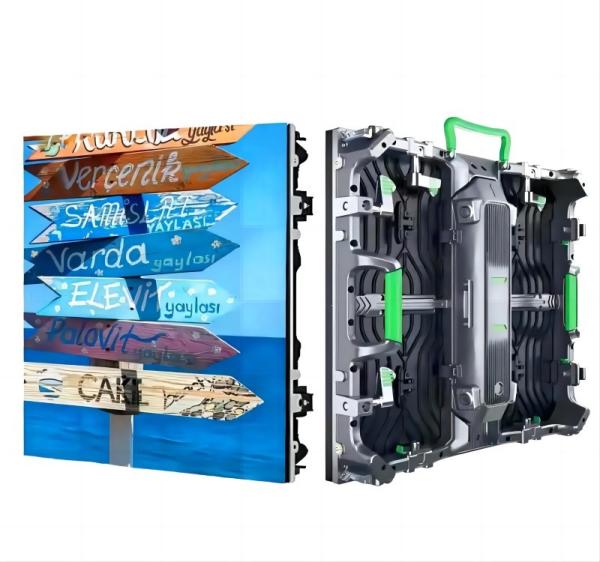

New Design Cabinet P3.91mm P4.81mm Stage Rental Indoor Led Display
Indoor 500x500mm High Refresh Rate 3840Hz LED Display Cabinet
Widely used for stage, events, live broadcasting etc.
Features and Advantages:
- Quick Assembly and Disassebmly
Unique fast lock design, the upper and lower cabinet connection can
be completed in only one second
- Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device,
concave and convex 10 degrees of adjustment to meet the different
arc connection applications.
- Slim and Light Weight Die Casting Aluminum Cabinet Design
Weight only 7.5kg, easy to handle. Die cast aluminum cabinet,
perfect splicing without gaps. Fast locking makes assembly and
disassembly extremely easy. High-quality plugs ensure reliability.
- Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is
more efficient and convenient.
- High precision - the dimension is accurate to 0.1mm for
electromechanical processing.
- Compatibility - new structural design, meeting the requirements
of hoisting and stacking, and indoor and outdoor requirements.
- Reliable - high strength and hardness, good heat dissipation
effect.
- Cost - the weight of the box is light and the installation cost
is low; Low power consumption of box, saving operation cost and
labor cost.
- Removable Power Box
Removable Power Box with pin connection design, better image
quality and easy for maintenance
- Support Front Service
- Concave and Convex Installation
Flexible Installation method to meet different applicatioin
scenarios. Curved with every 2.5° between -10°and 10°, which can
make convex and concave.
- Mix using 500X500mm box with 500X1000mm box
Parameters:
| Model | Di-XH2.6 | Di-XH2.9 | Di-XH3.9 | Di-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
- 20 Years professional led display manufacturer
- Short delivery time: 5-15 working days, adjustable according to
customer request
- Wholesale price
- OEM and ODM service
- CE, ROHS, FCC, ETL, TUV certified supplier
