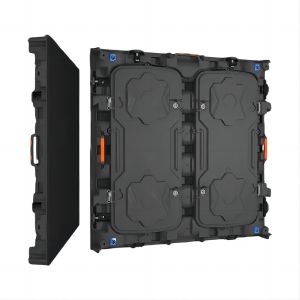

Outdoor Fixed LED Display Video Wall Screen Aluminum Front Service
LED Cabinet
Outdoor LED Display ,Advertising Electronic LED Video Wall Outside
Application
Front maintenance: Front maintenance is characterized by saving
space. For wall-mounted structures, space is extremely expensive,
so there will not be too many places left as maintenance channels.
Therefore, the pre-maintenance can greatly reduce the overall
thickness of the LED full-color display screen structure, which can
not only be well integrated with the surrounding building
environment but also save space while ensuring the effect.
Feature
- Die-cast aluminum cabinet, light weight,Fast lock for quick
installation, only takes 10 seconds
- Front/Rear maintenance, direct wall mounting with high-precision
led screen cabinet, extending service life
- IP65 waterproof
- High brightness and high contrast, clear viewing in outdoor
bright environment
- Brilliant picture, vivid colors, stable picture quality, suitable
for outdoor environment use
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch: 4mm,5mm,6.67mm,8mm and 10mm
- Cabinet size: 960x960mm Die-casting Aluminum Cabinet
- Refresh Rate: 3840Hz
- LED Module size 320X320mm
Rear Service: 320X160mm LED Module
Front Service 320X320mm LED Module
- Multi Installation Way of Cabinet
Support fixed installation for advertisement, adding flying bar,
connectiors and fast lock for rental installation,adding rubber
sushion and bracket for perimeter installation LED display
- IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and
stable operation in all kinds of outdoor environments.
- Seamless Splicing
Equipped with unique lock, the position of each cabinet can be
precisely adjusted from Six directions
Parameters:
| Model | E-N4 | E-N5 | E-N6 | E-N8 | E-N10 |
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 62500 pixels/m2 | 40000 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 | 960 x960 x 120 | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 | 3 x 3 | 3 x 3 | 3 x 3 |
| Module Resolution | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |
| Cabinet Resolution | 240 x 240 | 192 x 192 | 144 x 144 | 120 x 120 | 96 x 96 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Weight per Cabinet | 33kgs | 33kgs | 33kgs | 33kgs | 33kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to
customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
